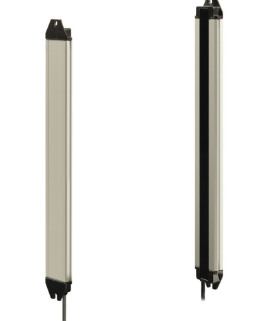

SSXU20-T160

Hết hàng
Thương hiệu: TAKEX Tình trạng: Hết hàng
Part NumberSSXU20-T160

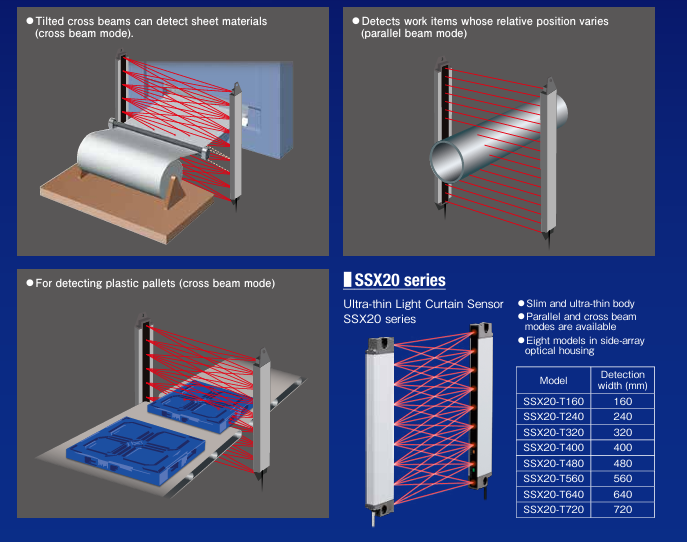

Detection methodThrough beam
Detection distanceParallel beam mode: 0-4m
Detection targetParallel beam mode: Opaque $25mm or more
Optical axis interval20mm
Number of optical anes9
Detecting width160mm
Power supply12-24VDC ±10%, Ripple 10%
Power consumption75mA or less
Output modeNPN/PNP Open collector output (Output selectable) Load current: 50mA (30VDC) or less Residual voltage: 2V or less
Operation modeLight ON: Activated when beams of all optical axes are received (Deactivated when a beam of any optical axis is blocked).
