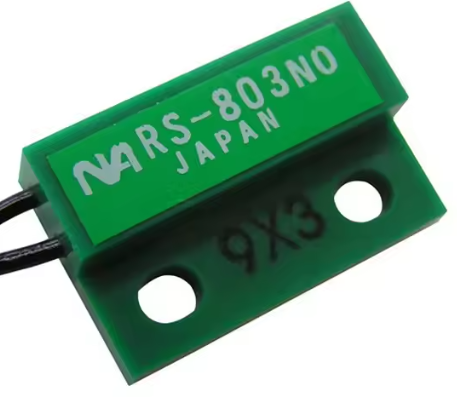

RS-803NO

Hết hàng
Thương hiệu: NA Tình trạng: Hết hàng
Part NumberRS-803NO
Operation methodNO
Operating Distance3.5+1.5, -1.0 mm
Standard detection object_1MFT-2021
Standard detection object_2M-803
Purpose of useFor magnet detection
Operating temperature range-10°C to +60C
Operating voltage rangeAC 1 to 125V
DC 1 to 100V
Maximum opening and closing capacityAC 10VA
DC 10W
Current rangeAC 10 / A to 0.3A
DC 10 A A to 0.3A
Electrical Life7
2×10 times
(DC 12V 5mA resistive load)
Protective structureIP67
0₫
