NA1-11

Hết hàng
Thương hiệu: PANASONIC Tình trạng: Hết hàng
Part NumberNA1-11

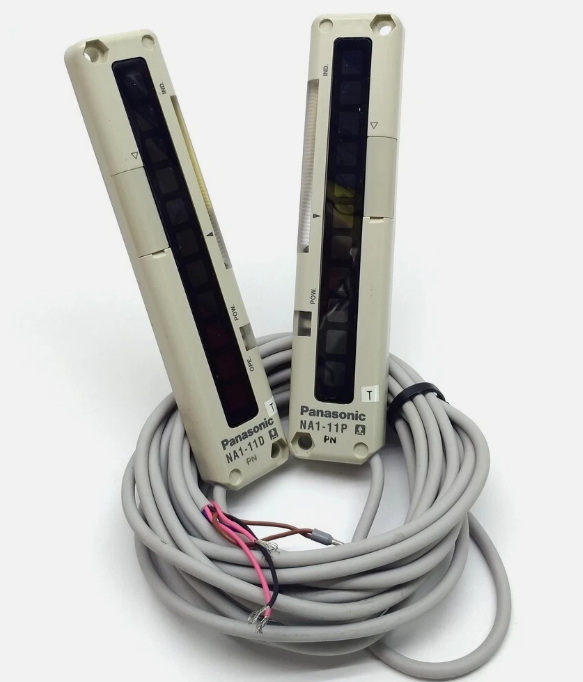

Products NameSmall / Slim Object Detection Area Sensor
Product detailsPNP output
Sensing height100 mm 3.937 in
Sensing range0.17 to 1 m 0.558 to 3.281 ft
(Note: The sensing range is the possible
setting distance between the emitter and
 the receiver. The sensor can detect an
object less than 0.17 m 0.558 ft away.)
Element pitch10 mm 0.394 in
Number of emitting / receiving elements11 Nos. each on the emitter and the receiver,
respectively
Sensing objectø13.5 mm ø0.531 in or more opaque object
Supply voltage12 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumptionEmitter: 80 mA or less, Receiver: 100 mA or less
0₫
