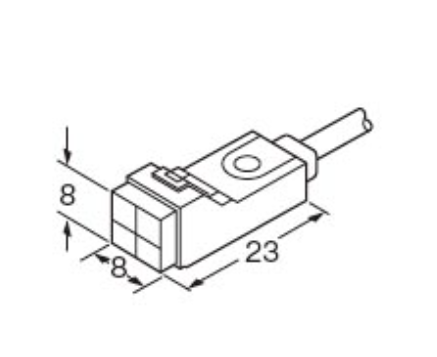

| Part Number | GXL-8HU |
| Products Name | Micro-size Inductive Proximity Sensor |

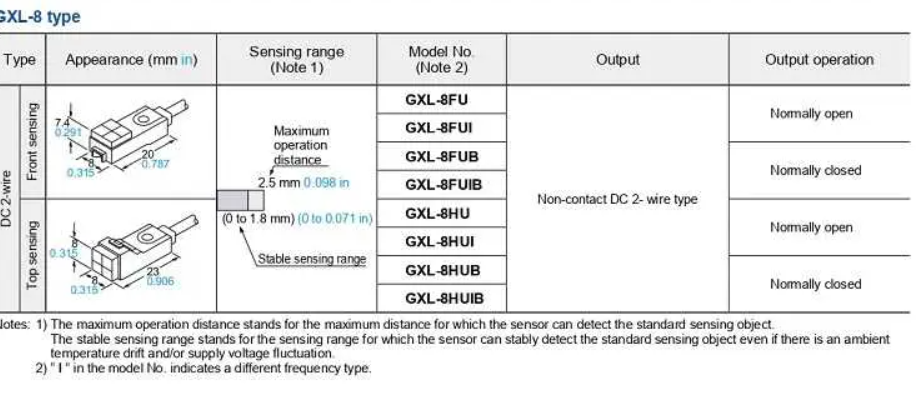

| Product details | GXL-8 type |
| The price of the product | Please contact our office |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Max. operation distance | 2.5 mm 0.098 in plus or minus 20% (Note) The maximum operation Adistance stands for the maximum distance for which the sensor can detect the standard sensing object. |
| Stable sensing range | 0 to 1.8 mm 0 to 0.071 in (Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. |
| Standard sensing object | Iron sheet 15 x 15 x t 1 mm 0.591 x 0.591 x t 0.039 in |
| Hysteresis | 20 % or less of operation distance |
| (with standard sensing object) | |
| Repeatability | Along sensing axis, perpendicular |
| to sensing axis: 0.04 mm 0.002 in or less | |
| Supply voltage | 12 to 24 V DC plus or minus 10 % |
| Ripple P-P 10 % or less |
