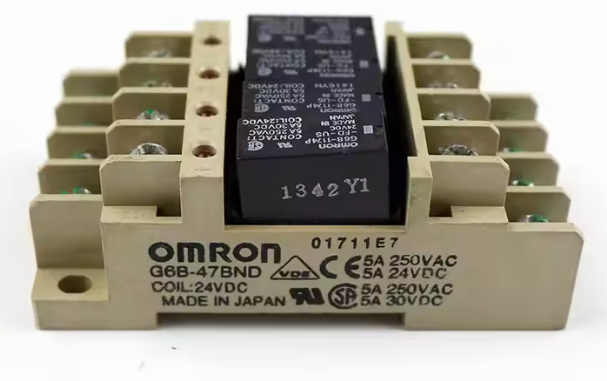

G6B-47BND DC24

Hết hàng
Thương hiệu: OMRON Tình trạng: Hết hàng
Contact resistance (see note 2)100 mΩ max.
Operate time10 ms max. (approx. 3 ms)
Release time15 ms max. (approx. 4 ms)
Insulation resistance1,000 MΩ min. (at 500 VDC)
Shock resistanceDestruction: 1,000 m/s2 (approx. 100G)
 Malfunction: 100 m/s2 (approx. 10G)


Endurance
Mechanical: 50,000,000 operations min
(at 18,000 operations/hr)
 Electrical:100,000 operations min.
 (at 1,800 operations/hr, rated load)
 500,000 operations min. for long-life at 2 A
 100,000 operations min for long-life at 5 A

0₫
