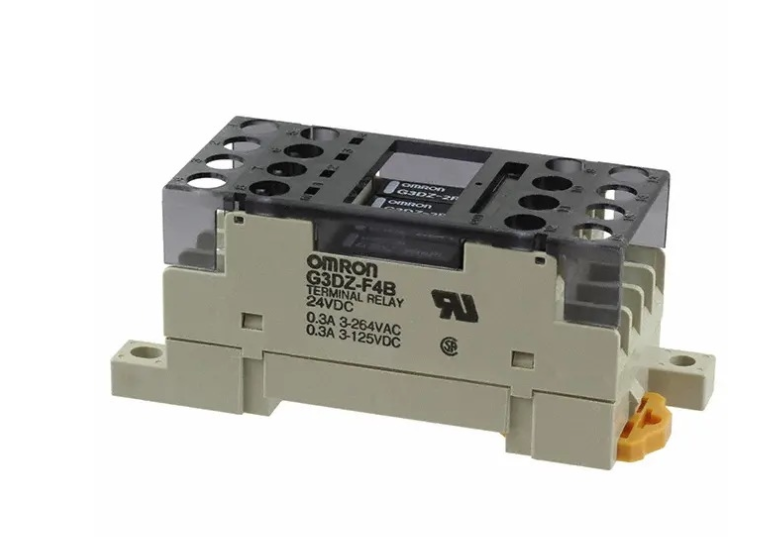

G3DZ-F4B

Hết hàng
Thương hiệu: OMRON Tình trạng: Hết hàng
Must operate time10 ms max.
Release time15 ms max.
Output ON-resistance2.4 Ω max.
Leakage current at OFF state10 μA max. (at 125 VDC)
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strength between I/O2,000 VAC, 50/60 Hz for 1 min
Vibration resistance10 to 55 to 10 Hz, 0.75-mm single amplitude
(1.5-mm double amplitude)
Shock resistance500 m/s2
Ambient operating temperature,
Ambient storage temperature-25 to 55°C (with no icing)
Ambient operating humidity45% to 85%
LED colorYellow
Sealing---
WeightApprox. 65 g
0₫
