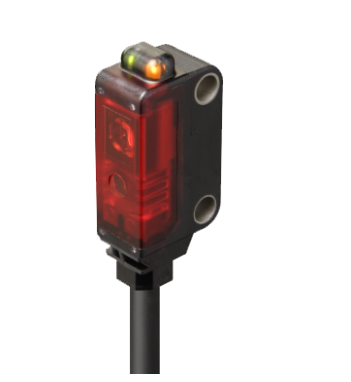

| Part Number | EX-L221 |
| Products Name | Amplifier Built-in Ultra-compact Laser Sensor |

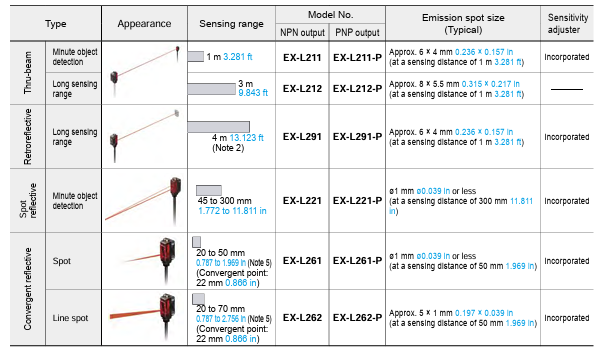

| Product details | Spot reflective type |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), |
| UKCA Marking (EMC Regulations, RoHS Regulations) | |
| Sensing range | 45 to 300 mm 1.772 to 11.811 in |
| (Note)The sensing range is specified for white | |
| non-glossy papar (100 x 100 mm 3.937 x | |
| 3.937 in) as the object. | |
| Emission spot size (Typical) | ø1 mm ø0.039 in or less |
| (at a sensing distance of 300 mm) | |
| Sensing object | ø1 mm ø0.039 in or less |
| (at a sensing distance of 300 mm) | |
| Minimum sensing object (Typical) | Gold wire of ø0.01 mm ø0.0004 in |
| (Note)Typical values when the sensitivity | |
| adjuster is optimally adjusted. | |
| Hysteresis | 20 % or less of operation distance |
| Repeatability (perpendicular to sensing axis) | 0.02 mm 0.0008 in or less |
| (at 100 to 200 mm sensing distance) | |
| (Note)Typical values when the sensitivity a | |
| djuster is optimally adjusted. | |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
