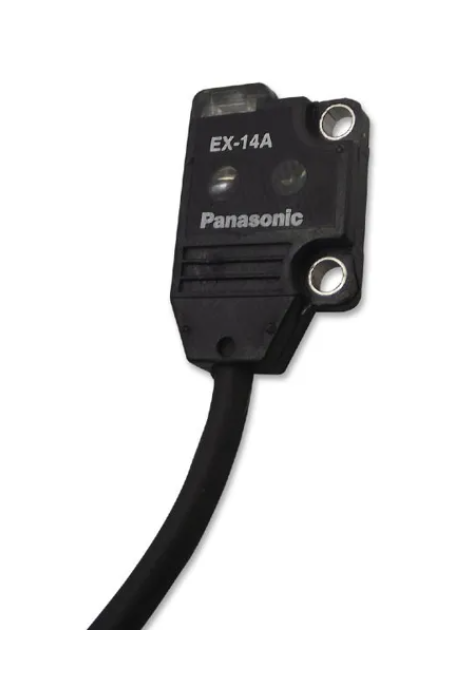

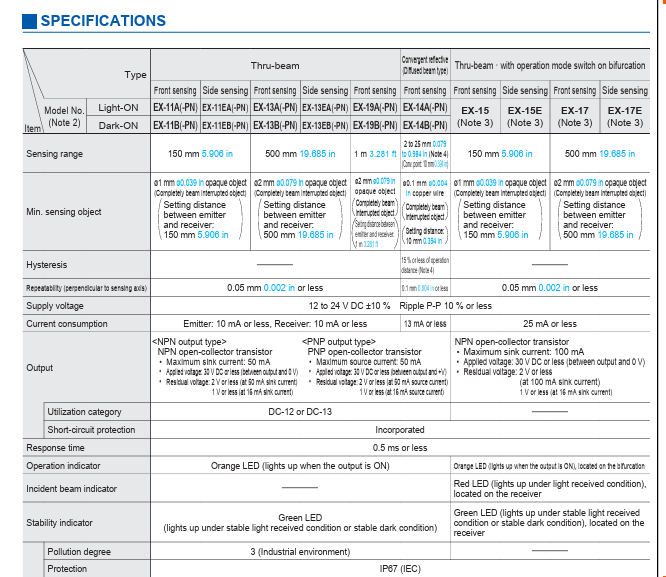

| Part Number | EX-14A |
| Products Name | Ultra-slim Photoelectric Sensor |
| Product details | Convergent reflective (Diffused beam type) [Front sensing] |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL Recognition certification |
| Sensing range | 2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in) (Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 x50 mm 1.969 x 1.969 in) as the object. |
| Min. sensing object | ø0.1 mm ø0.004 in copper wire (Completely beam interrupted object) (Setting distance: 10 mm 0.394 in) |
| Hysteresis | 15 % or less of operation distance (Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 x50 mm 1.969 x 1.969 in)as the object. |
| Repeatability(perpendicular to sensing axis) | 0.1 mm 0.004 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Rir |
| 0 % Ripple | |
| P-P 10 % or less |
