EX-13EA/EX-13EB

Hết hàng
Thương hiệu: PANASONIC Tình trạng: Hết hàng

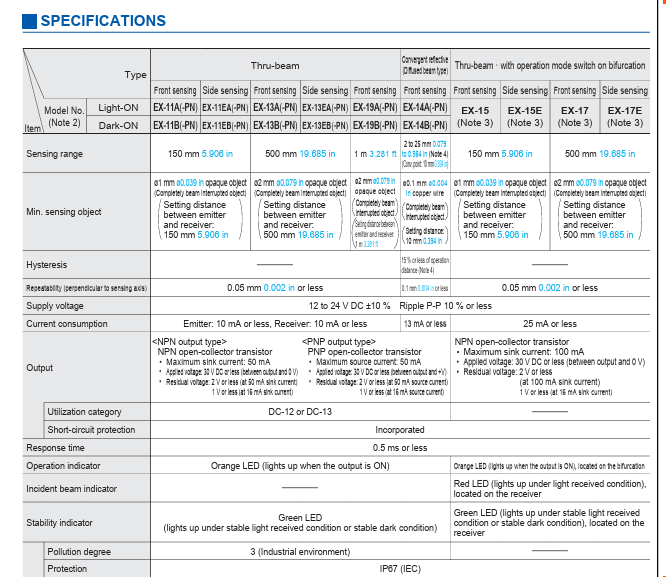

Part NumberEX-13EA

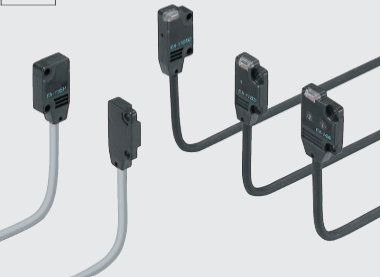

Products NameUltra-slim Photoelectric Sensor
Product detailsThru-beam [Side sensing]
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive),
UKCA Marking(EMC Regulations,
RoHS Regulations),
ISO 13849-1 (Category 1, PLc)
 (Note), UL Recognition certification
Sensing range500 mm 19.685 in
Min. sensing objectø2 mm ø0.079 in opaque object
 (Completely beam interrupted object)
 (Setting distance between emitter and
 receiver: 500 mm 19.685 in)
Hysteresis-
Repeatability(perpendicular to sensing axis)0.05 mm 0.002 in or less
Supply voltage12 to 24 V DC plus or minus 10 % Ripple
P-P 10 % or less
0₫
