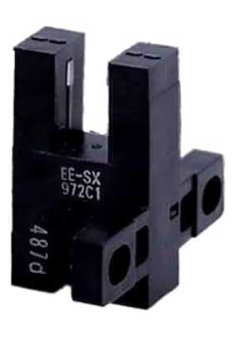

EE-SX972-C1

Hết hàng
Thương hiệu: OMRON Tình trạng: Hết hàng
Part NumberEE-SX972-C1
TypeGrooved Type (T-shaped) (Slot center 7 mm)
Luminous methodNon-modulated
Sensing methodThrough-beam type
Sensing distanceSlot width: 5 mm
Operation modeWith both Dark-ON and Light-ON (2 outputs)
Standard sensing objectOpaque, 2 x 0.8 mm min.
Differential distance elements0.025 mm max.
Light source (Peak wavelength)Infrared LED (940 nm)
IndicatorLight indicator (orange)
Power supply voltage5 to 24 VDC ±10%
ripple (p-p) 10 % max.
Current consumption21 mA
