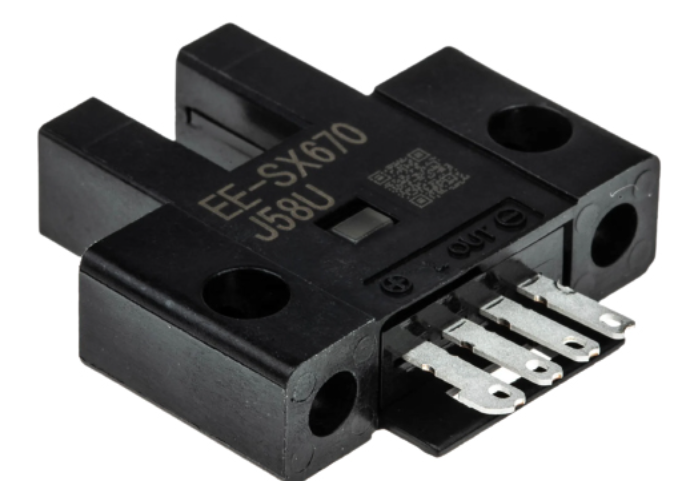

| Part Number | EE-SX670 |
| Sensing distance | 5 mm (slot width) |
| Sensing object | Opaque: 2 x 0.8 mm min. |
| Differential distance | 0.025 mm |
| Light source | Infrared LED with a peak wavelength of 940 nm |
| Indicator *1 | Light indicator (red) (turns ON when light is interrupted for models with A or R suffix) |
| Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. |
| Current consumption | 12 mA max. |
| Response frequency *2 | 1 kHz min. (3 kHz average) |
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver. |
| Ambient temperature range | Operating: -25 to +55°C, Storage: -30 to +80°C (with no icing or condensation) |
| Ambient humidity range | Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation) |
| Vibration resistance | Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2) 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC60529 IP50 |
