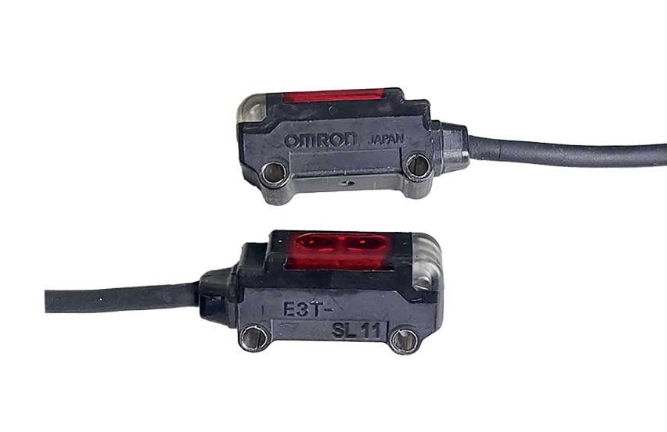

E3T-SL11

Hết hàng
Thương hiệu: OMRON Tình trạng: Hết hàng
Part NumberE3T-SL11
ShapeSquare type
Sensing methodLimited Reflective
Sensing distanceWhite paper 50 x 50 mm: 5 to 15 mm
Minimum sensing object0.15 mm min. dia. (sensing distance: 10 mm)
Differential distance2 mm max.
Light sourceRed LED (650 nm)
Power supply voltage12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption20 mA max.
Control outputNPN open collector
26.4 VDC max.
50 mA max.
Residual voltage: 1 V max.
 (Load current Less than 10 mA)
Residual voltage: 2 V max.
 (Load current 10 to 50 mA)
Operation modeLight-ON
Protective circuitOutput short-cut protection, Output reverse polarity
protection, Power supply reverse polarity protection
Response timeOperate or reset: 1 ms max.
Ambient illuminanceIncandescent lamp: 5,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range(Operating)-25 to 55 C (with no freezing or condensation)
Ambient temperature range (Storage)-40 to 70 C (with no freezing or condensation)
0₫
