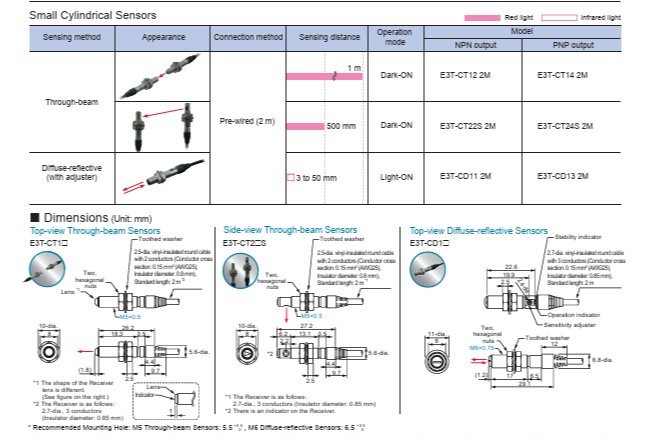

E3T-CT12

Hết hàng
Thương hiệu: OMRON Tình trạng: Hết hàng
Part NumberE3T-CT12
ShapeCylinder type
Sensing methodThrough-beam type
Sensing distance1 m
Minimum sensing objectOpaque: 4 mm dia. min.
Differential distanceReceiver: 2 °
Light sourceRed LED (630 nm)
Power supply voltage12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumptionEmitter: 15 mA max.
Receiver: 15 mA max.
Control outputNPN open collector
30 VDC max.
80 mA max.
Residual voltage: 1 V max.
Operation modeDark-ON
Protective circuitOutput short-cut protection,
Power supply reverse polarity protection
Response timeOperate or reset: 0.5 ms max.
Ambient illuminanceIncandescent lamp: 3,000 lx max.
Ambient temperature range (Operating)-25 to 55 °C (with no freezing or condensation)
Ambient temperature range (Storage)-30 to 70 C (with no freezing or condensation)
Ambient humidity range (Operating)35 to 85 % (with no condensation)
Ambient humidity range (Strage)35 to 85 % (with no condensation)
