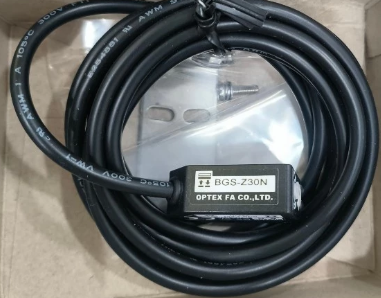

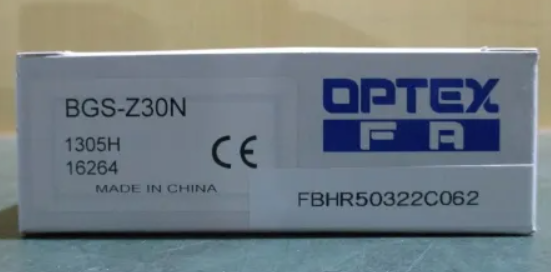

BGS-Z30N

Hết hàng
Thương hiệu: Optex FA Tình trạng: Hết hàng
Sensing distance10 to 300 mm*1
Adjustable distance range50 to 300 mm*1
Light sourceRed LED
Spot size (focal length)Approx. ø30 mm
Distance: 300 mm
Response time500 us or less
Hysteresis5%
Distance adjustment4-turn endless potentiometer
IndicatorsOutput indicator (orange)
Stability indicator (green)
Control outputNPN/PNP type open collector Max. 100 mA/30 VDC
Output modeLight ON / Dark ON selectable
Connection typeCable type: Cable length: 2 m 03.8 mm / Connector type: M8, 4-pin
Supply voltage10 to 30 VDC, including 10% ripple (p-p)
0₫
