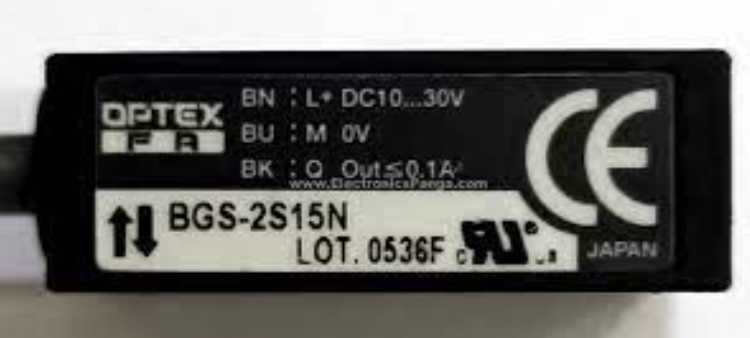

BGS-2S15N

Hết hàng
Thương hiệu: Optex FA Tình trạng: Hết hàng
Part NumberBGS-2S15N
Light sourceRed LED
Response time0.5 ms or less
Repeat accuracyLight axis direction: 0.1 mm Vertical direction: 0.3 mm
Hysteresis10% or less
Distance adjustment6-turn endless potentiometer
IndicatorsOutput indicator (orange),
Stability indicator (green)
Control outputNPN/PNP type open collector
Max. 100 mA/30 VDC
Output modeLight ON / Dark ON switched by wiring
Connection typeCable type: Cable length: 2 m 03.8 mm Connector type: M8, 4-pin
Insulation resistance20 MΩ  or more (with 500 VDC)
