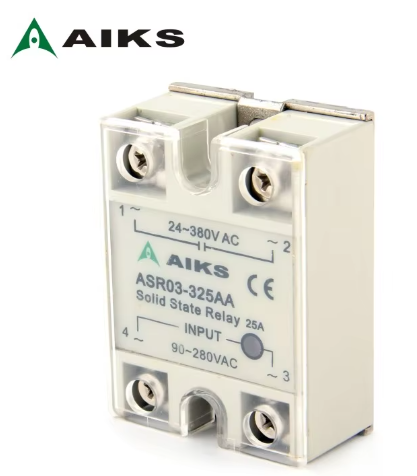

ASR03-325DA

Hết hàng
Thương hiệu: AIKS Tình trạng: Hết hàng

Rating work current                                                                                 10A15A25A40A60A80A100A

Breats condition the control voltage                                                  ≤4.5mA

Inputcontrol voltage                                                                                DC:3~32V AC:90~280V

Work voltage                                                                                              38-380VAC

Active status instruction                                                                         LED

Guarantees breakover                                                                             3VDC 90VAC

Guarantees shutdoun voltage                                                               1VDC 20VAC

Ambient temperature                                                                             -30C~80°C

Passes condition the pressuredrop                                                     ≤1.5VAC

Control type                                                                                               Zero crossing triggering

Make-and-break time                                                                             DC:≤10uS AC:≤30uS

Arequency range                                                                                      50/60Hz

Control current                                                                                          4.5~20mA 2~15mA

Dielectric Strength                                                                                   AC2500V 1min

Terminal structure                                                                                   Bolt post
