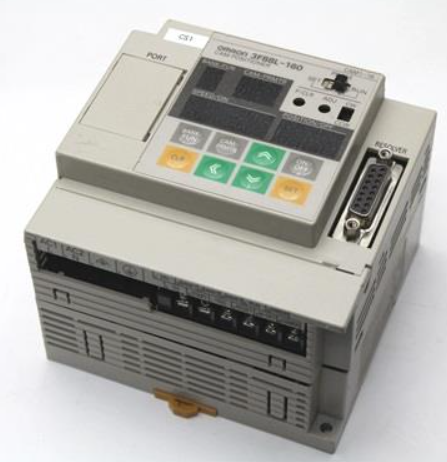

3F88L-160

Thương hiệu: OMRON Tình trạng: Còn hàng
Model3F88L-160
Supply voltage100 to 240 VAC, 50/60 Hz
Allowable supply voltage85 to 264 VAC
Power consumption27 VA max.
Inrush current40 A at 10 ms max.
I/O power supply145 mA at 24 VDC
Allowable I/O supply voltage20.4 to 26.4 VDC
Insulation resistance20 MΩ min. between all external AC power supply terminals and the protective ground terminal (at 500 VDC) *
Dielectric strength2,300 VAC at 50/60 Hz for 1 min between all external AC power supply terminals and the protective ground
terminal (leakage current: 10 mA max.) *
Noise immunityIEC 61000-4-4: 2 kV power line
Vibration resistanceConforms to JIS C0911: 10 to 57 Hz with 0.075-mm single amplitude 80 min each in X, Y, and Z directions,
57 to 150 Hz at 9.8-m/s2 acceleration (sweeps: 8 min × 10 sweeps = 80 min total)
Shock resistanceConforms to JIS C0912: 147 m/s2 three times each in X, Y, and Z directions
0₫
